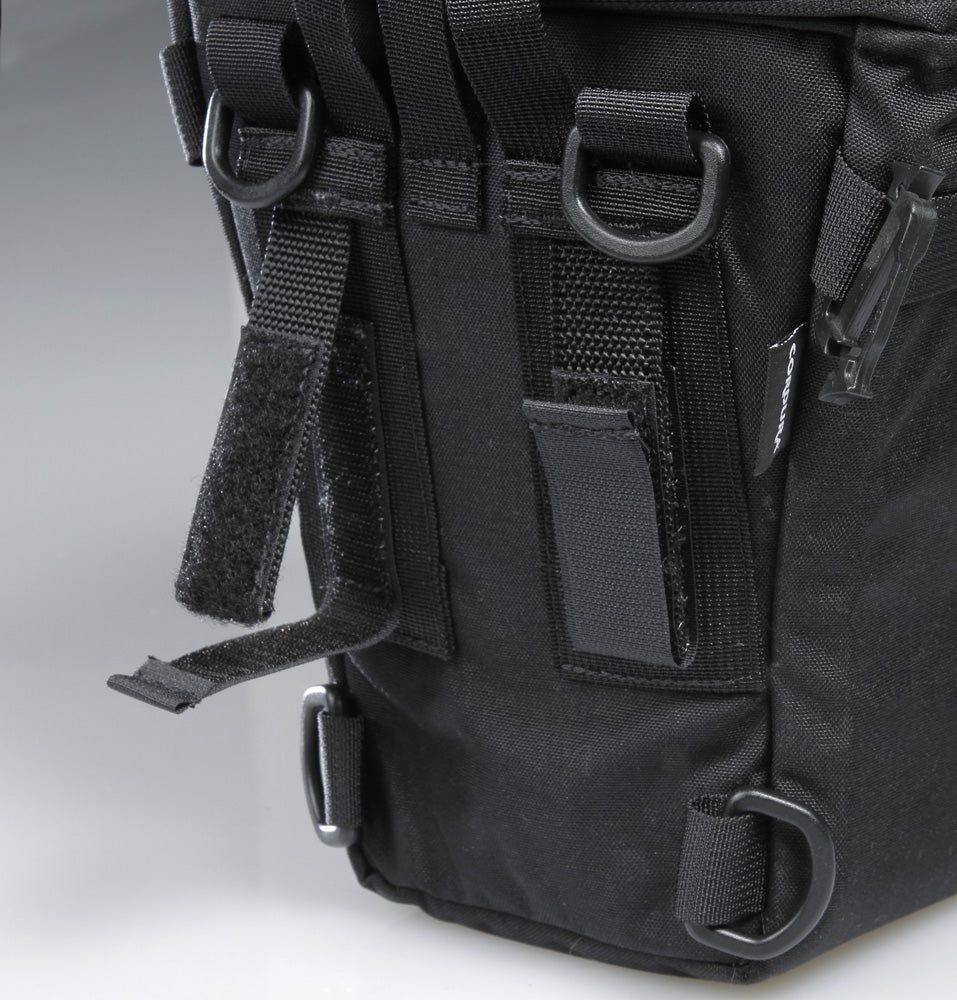

New KATS (Kinesis attachment tab system) on new Holster cases
The KATS (Kinesis Attachment Tab System) is now on all holster cases now (some of the other photos are dated & don’t reflect that change).
Side view showing webbing slots for attaching pouches. Siamese SlikClip buckles are for attaching old-style TwinBuckle pouches & can be removed.

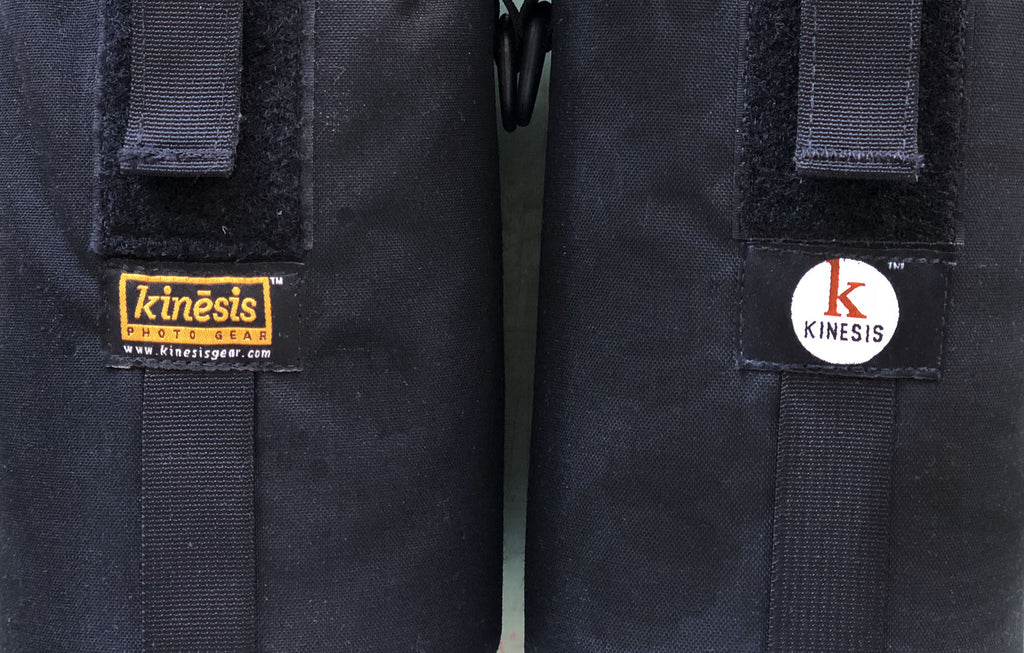

We’ve changed our logo! Old label on the left—new one on the right. Some current inventory may have old label.
E280 piggy-backed onto a holster case (no adapters needed). Slip the optional Y305 strap through the webbing slot below the label on the lens pouch and then clip both ends to the corners of the holster. This keeps the lens pouch from flopping around. A Y208 will also work & instead of attaching to the corners, it surrounds the whole case.

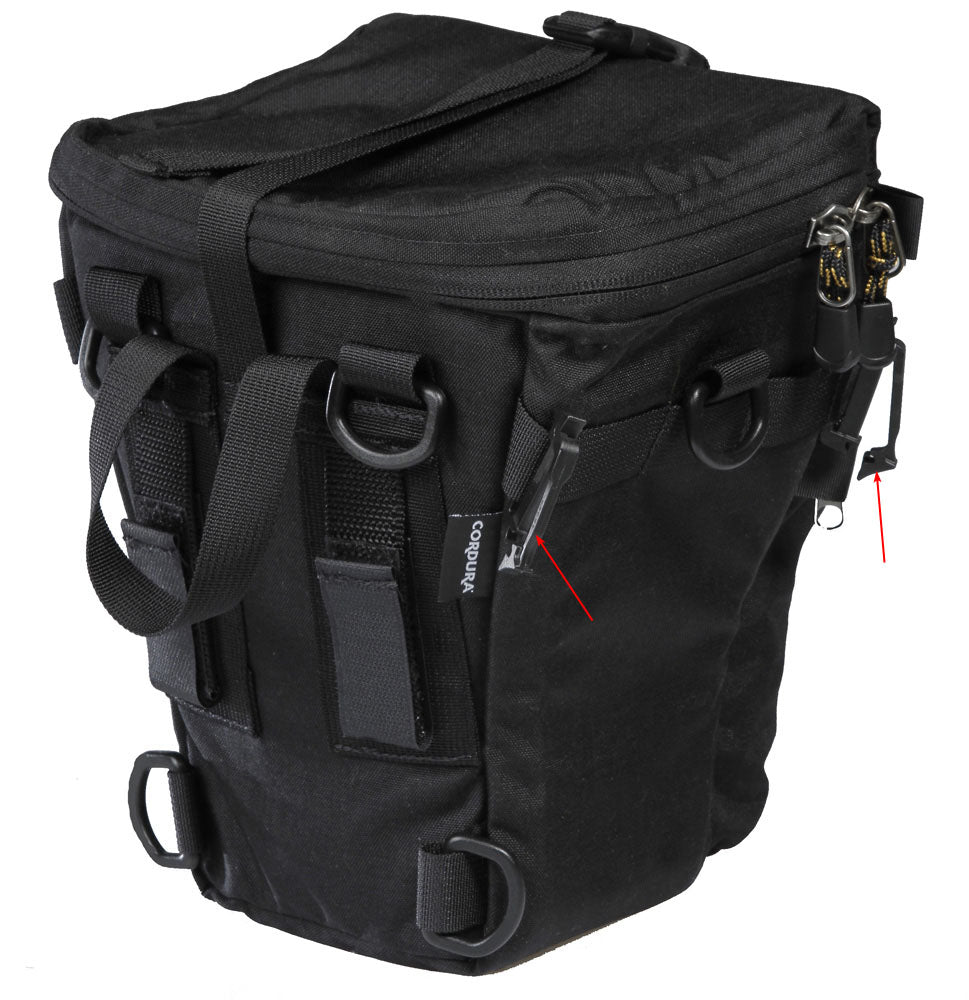

 If you have some of the older Kinesis lens pouches with metal sliders and want to attach them, use the SlikClips to secure them, otherwise you can remove these.

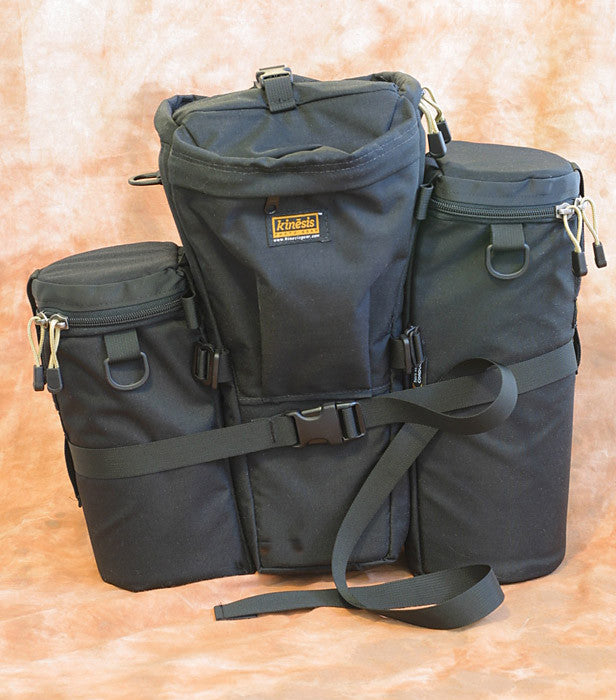

Two lens pouches can be attached to either side of a holster case (C640 shown) and stabilized with a Y205 strap or a pair of Y305 straps.
Click for detailed captions (zipper flap has been replaced by a water repellent zipper tape & cases now have KATS on back)

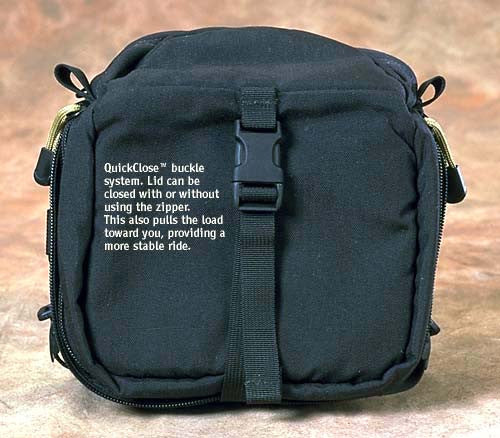

Each C-Series case features a Kinesis exclusive—a over the top QuickClose™ strap. This is faster than using the zipper each time and keeps the camera intact.

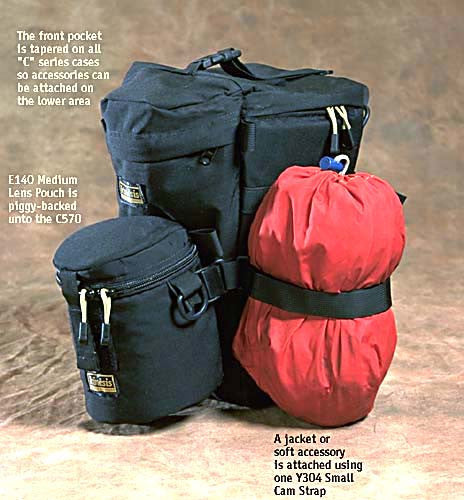

A jacket or other small soft accessory can be tucked under the QuickClose strap on the lid.

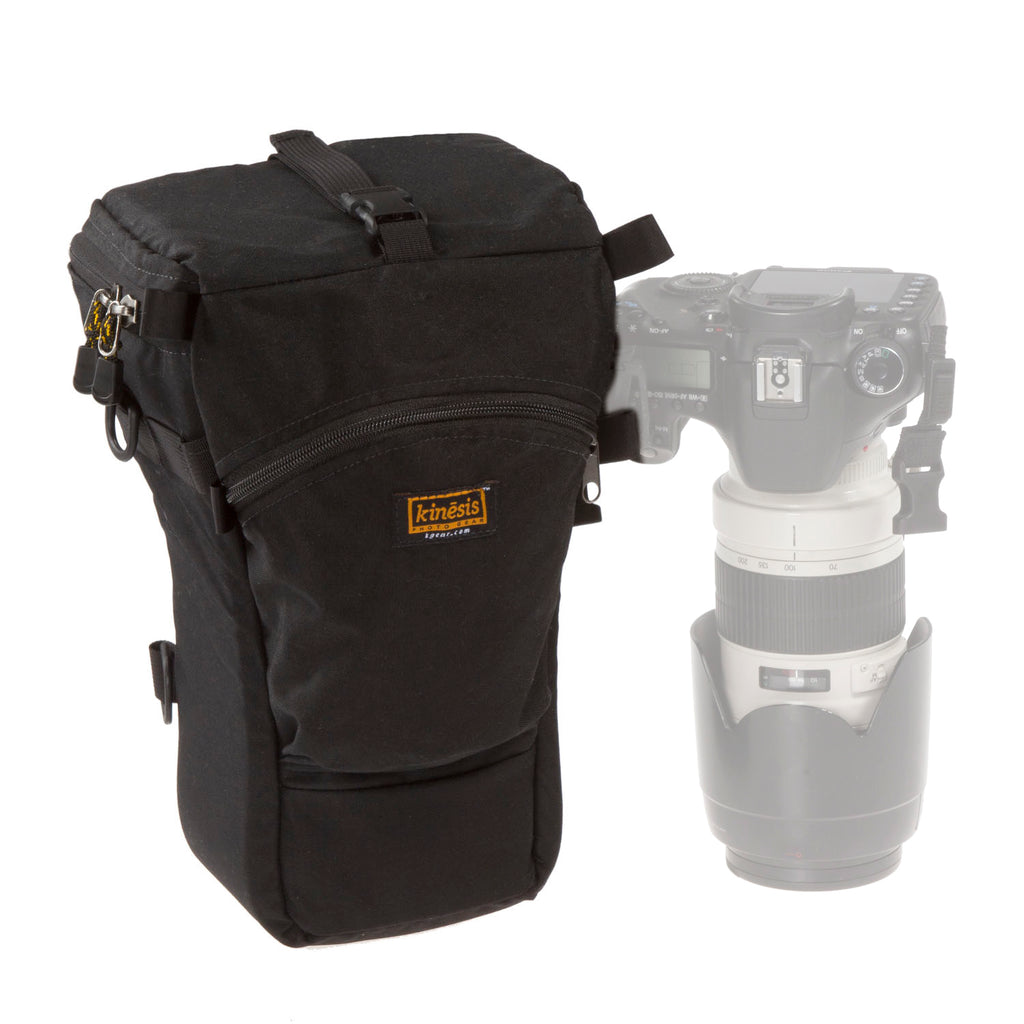

C600 — Large Holster Case

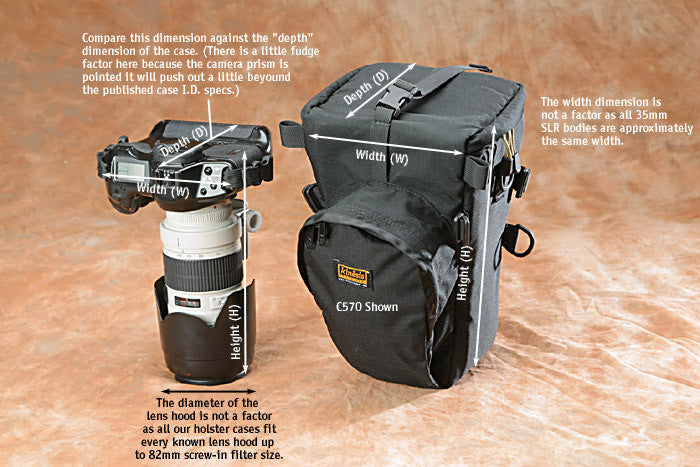

Click for important sizing information.
A holster can be carried in front on the chest.
C600 — Large Holster Case
Sling a Y315 (or heavier Y515) shoulder strap across your chest and attach to a holster case for additional support.
Sling a Y315 (or heavier Y515) shoulder strap across your chest and attach to a holster case for additional support.

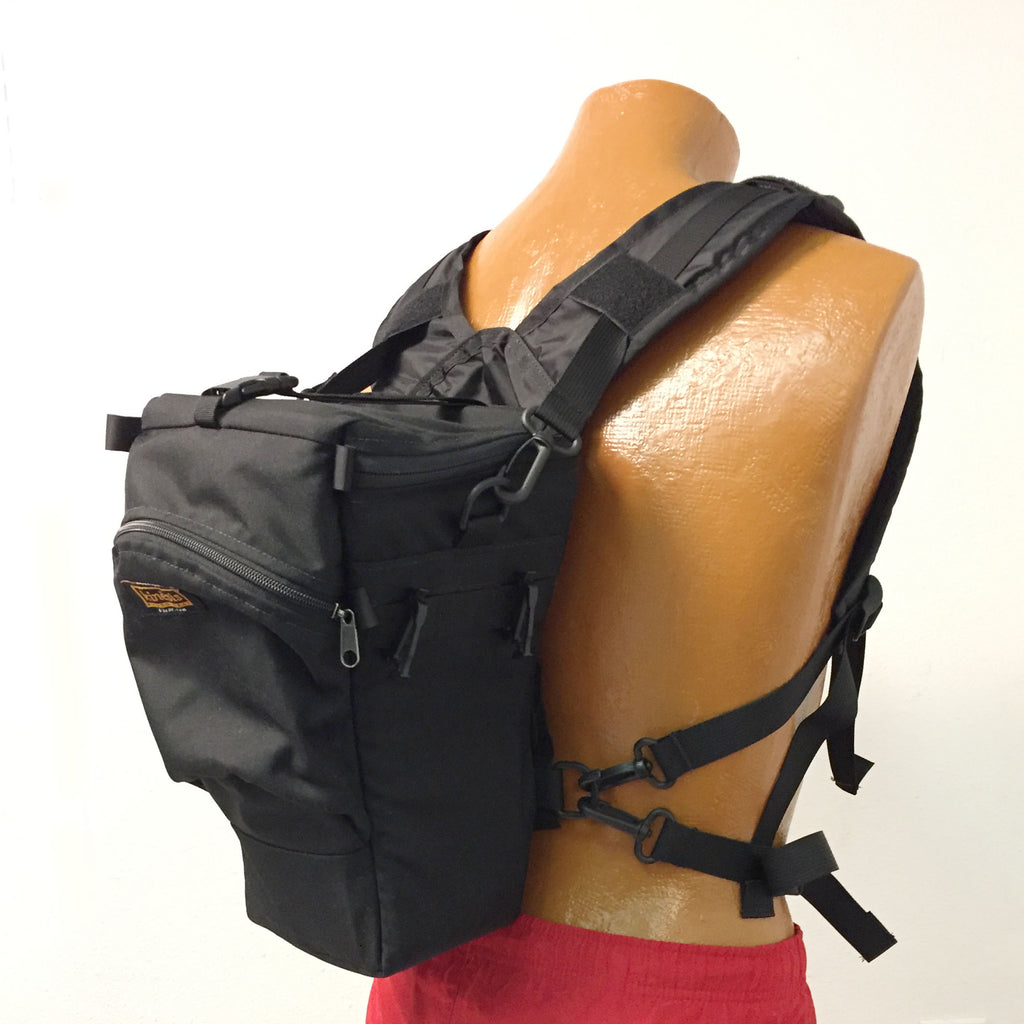

Back view showing optional H175 attached to holster case.
C600 — Large Holster Case
$79.00

C600 — Large Holster Case

The C600 is our most popular holster case as it is designed to fit the widely-used 70-200/2.8 lens with a body attached and the hood reversed.

  • Designed for a pro-sized DSLR body (including Nikon D3-series or Canon 1D-series bodies) and a 70-200/2.8 lens with the hood in the storage position.
  • This case fits a “small or large body” with “medium lens” attached. Will also accommodate any shorter body/lens combo listed by using the provided V100 CameraCushion™ — you can elevate the body with shorter lenses so it sits near the top of the case.
  • When used on a waistbelt, the optional Y309 strap kit is recommended to prevent the top of the case from pulling away from the belt.
  • This pocket will hold one shoe-mount flash unit or some prime lenses like a 50/1.4 with the hood attached & reversed (it is unpadded so one should exercise caution).
  • Features an “under the lid” pocket for lens tissue, CF or SD cards.
  • Each side of the holster has a row of webbing with slots sewn into it. This is for piggy-backing a lens pouch or other small Kinesis pouch. To stabilize the pouch, we recommend adding a Y305 strap. A Y208 will also work, but it doesn’t attach to the corners, but instead surrounds the whole case. See captions on detail photos.
  • Each holster case comes with a one pair of Siamese SlikClip buckles for attaching old style Kinesis TwinBuckle pouches to one side of the case. If you need additional Siamese SlikClips, they are available at cost, upon request. See detail photos.

Field Report

“Just wanted to let you know that the C580 fits my new Hasselblad H2 with 50mm lens and shade like a glove! I may end up putting a shorter rubber eyepiece on the viewfinder, as its about 1/4" longer then desired, but that is about it. I have the RRS L bracket on for the camera” (March 06)

“I thought you would like to know that the large holster case that I ordered earlier this month fits my Hasselblad H2D with the macro 120mm lens with hood on (extended). I can just reach right in and grasp the battery grip, pull the camera out and up to my eye, support it with my left hand, and shoot. All in 5 seconds!” (May 06) “I find that my 30D with the Canon 70-200mm f/2.8L is 10 5/8" tall. Even with my Canon 1.4x extender, it is only 11 3/4" tall and should fit in the C580.” (Feb 07)

Specifications

KATS space occupied on a belt: 1.5-wide modules

Constructed with 10mm closed cell foam on the sides, 6mm on the lid, and for additional protection, 16mm on the bottom.

U.S./Imperial
Top Opening* = 6dx7w"
Bottom (nose of the case) = 4.75x4.75**
Inside Height = 12.25"
Volume = 350 cu in (includes 60 cu in pocket)
Weight = 13 oz.

Metric
Top Opening* = 15dx18w cm
Bottom (nose of the case) = 12.0x12.0cm**
Inside Height = 31cm (5mm taller than the C580)
Volume = 6.0 liters (includes 1000 mL pocket)
Weight = 360 g

*The C540, C600 & C850 all have the same top opening dimension. These cases will yield a comfortable fit for a body up to 16cm (6.3") deep or a tight fit for a body up to 17.5cm (6.75") deep (measuring from the tripod thread to the top of the prism). The depth dimension of 15cm (6") is based on the rectangle-shaped opening–DSLR bodies are triangular shaped, so this series of cases will house a body deeper than the rectangular “depth” dimension.

**The bottom of the C600 is 12cm (4.75") square. It will accommodate a lens end (cap or hood) up to 12.5cm (5") in diameter — the front & rear of the case may bulge out a little.

Designed and Crafted in USA
